Description

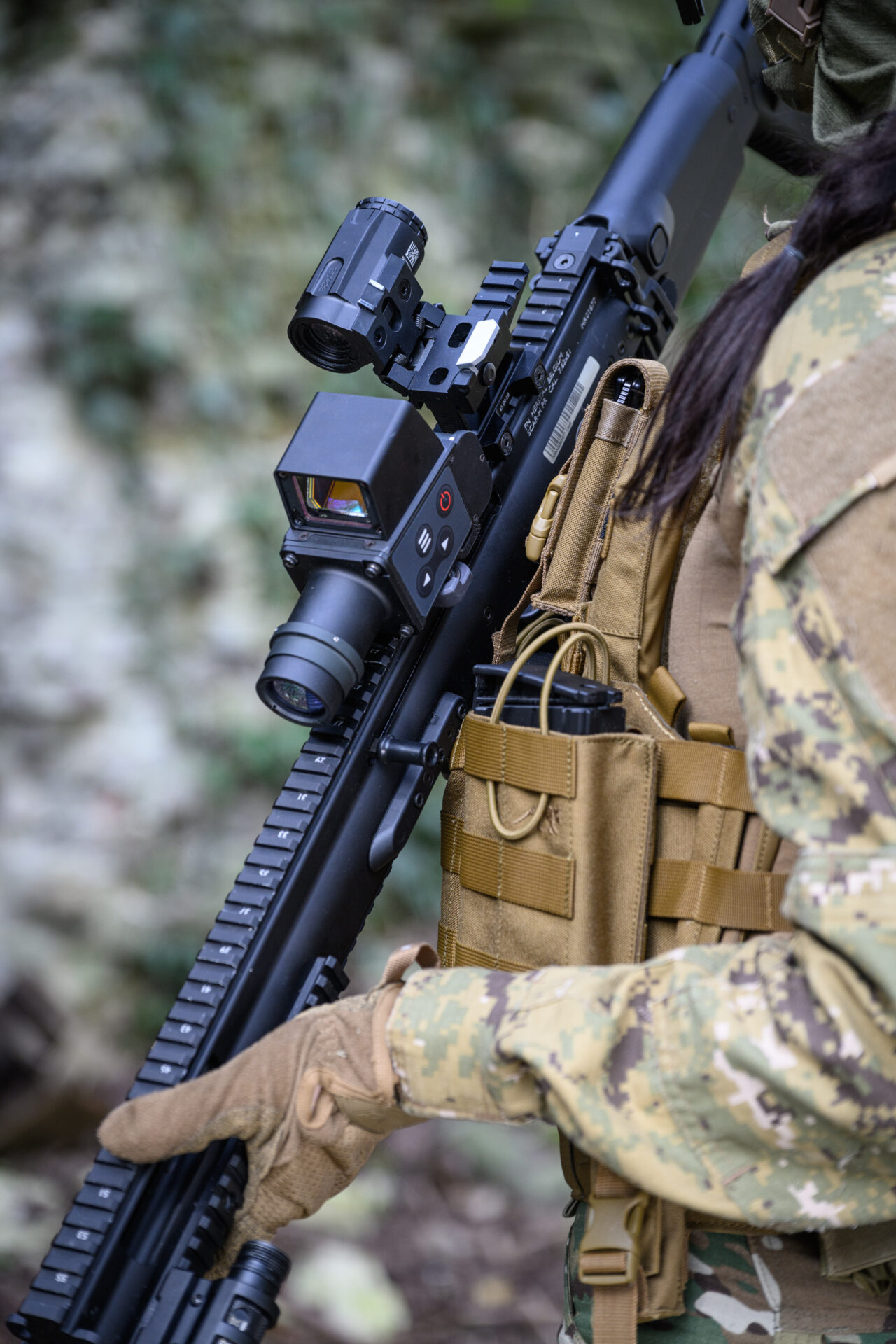

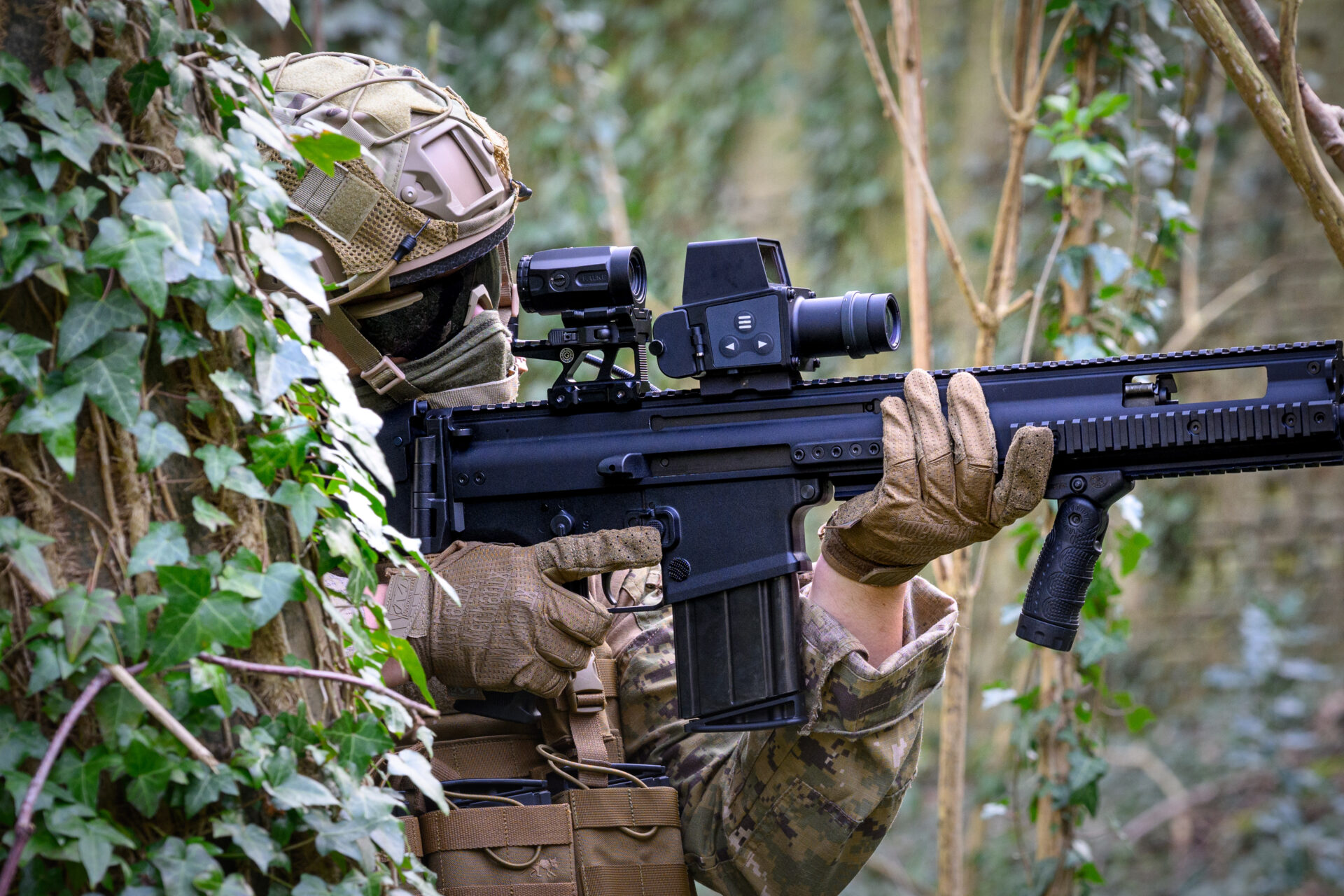

It combines a red dot sight with a thermal image, providing visibility for various scenarios. The thermal image can be fully or partially disabled, while selectively highlighting silhouettes of hot, camouflaged objects.

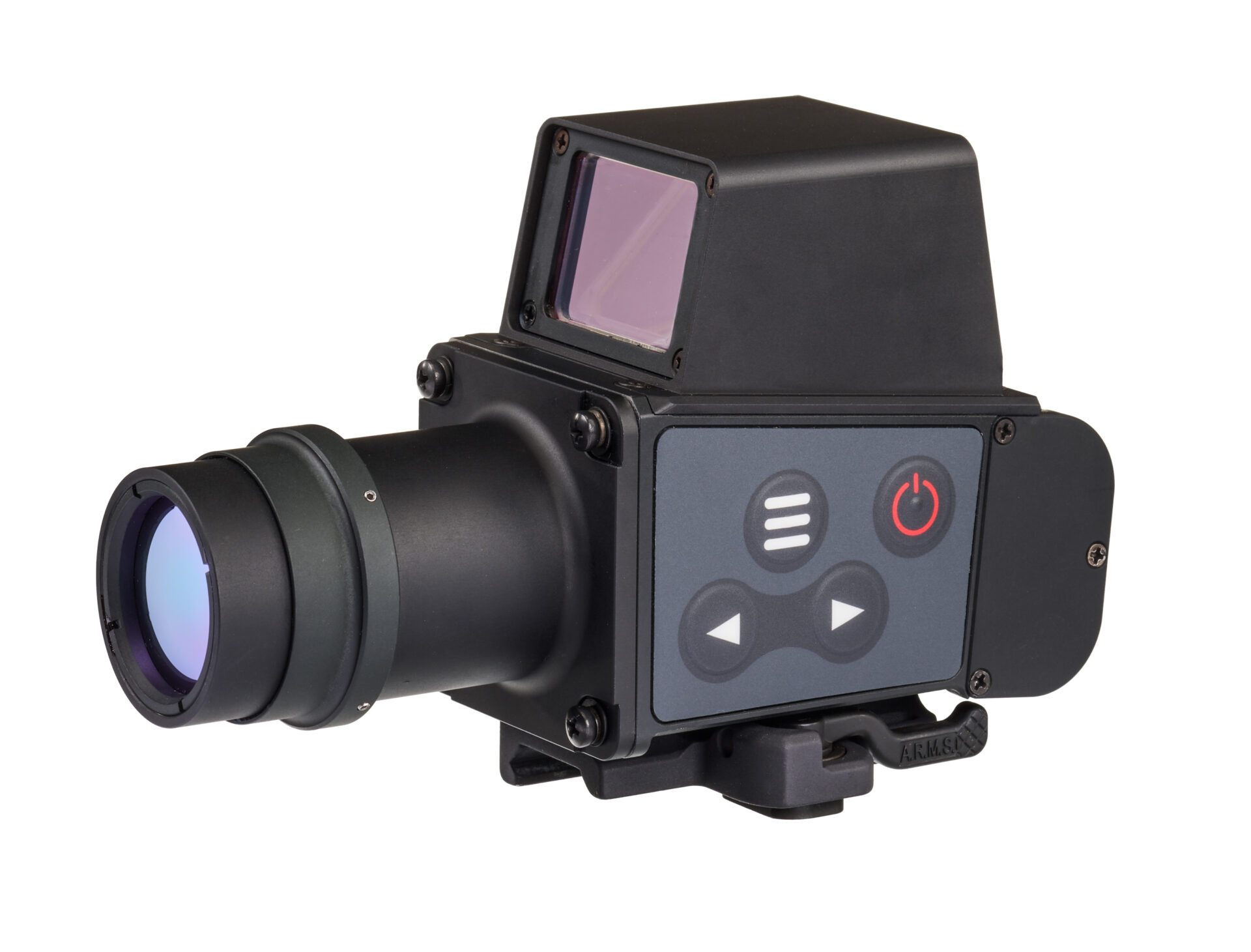

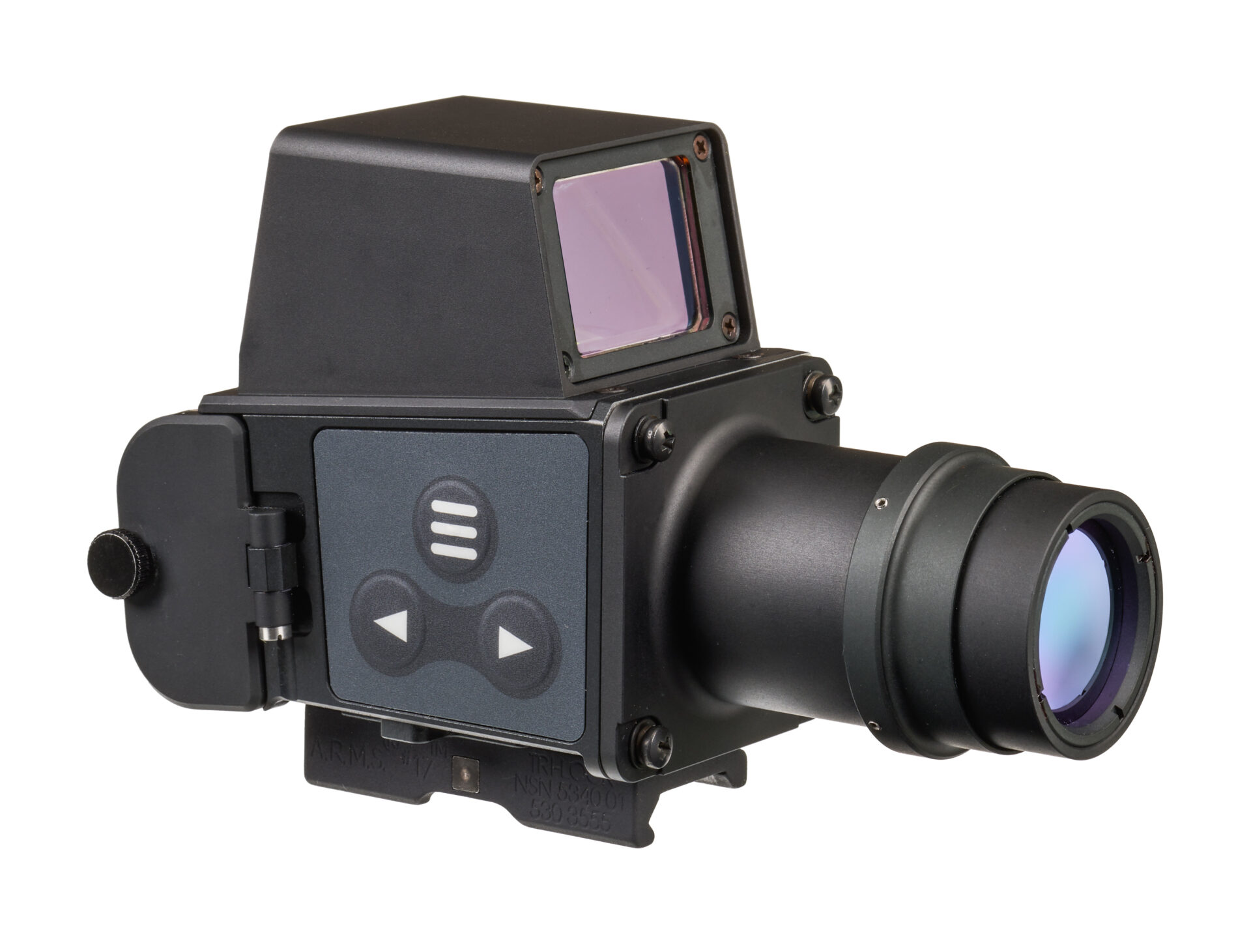

Designed for quick close-quarters combat, VIPERIS prioritises the ease of use. It features a fixed focus and a minimal number of buttons, conveniently placed on both sides of the sight. Users can adjust the reticle, including its shape and digital boresight position.

Key Benefits

• Lightweight
• Compact
• Ease of use
• Day & night quick reaction sight
• Long battery life
• Can be used with NVG
• Optional magnifying sight

Future Enhancement

• External USB connection to enable power, communication & video recording

Technical Specifications

• Detector type: Uncooled LWIR 8-12 µm, SHUTTERLESS
• Sensor Resolution: 640×480 pixels
• Field of View: 12° x 9°
• Focus range: 25 m to ∞
• Batteries: 2 CR123
• Autonomy: 7h thermal mode, >100h red dot mode
• Environmentals: MIL-STD-810G
• Weight, incl. batteries: <550 gr
• Dimensions, incl.weapon interface & protective caps: 96 x 63 x 150 mm
• Optical axis height: 72mm
