TIGRIS-IL Clip-on Night Sight

The TIGRIS-IL Clip-on Night Sight is part of OIP Sensor System’s range of night vision and thermal systems.
Designed for sniper rifles; it is a compact, lightweight and highperformance system.

Instrument Description

TIGRIS-IL allows seamless transition from day to night operations, without requiring boresight realignment.

It pairs with precision day scopes (1x to 8x magnification) and can be mounted easily by using a quick mechanism. No tools are needed to install it and it also features a gain control knob.

Powered by a standard AA battery, it can also be connected to an external power source for training or maintenance purposes. The sight
is ambidextrous, with adjustments options at the top center.

Additionally, a protective cap with a day training filter enables daytime use. Its integrated STANAG 4694 interface allows mounting it on weapons equipped with a MIL-STD-1913 (Picatinny) rail.

Technical Specifications

• Image intensifier tube : 4G – FOM min. 1800 (others are available)
• Magnification : 1x
• Field of View : 8.3°
• Focus range : 25 m to ∞
• Entrance pupil : 64 mm
• Exit pupil : 24 mm
• Power supply & autonomy : 1 AA alkaline or rechargeable battery (24 hrs at 20°C) Integrated low battery indicator
• Environmentals : MIL-STD-810G
• Weight, incl. battery : ≤ 880 gr
• Dimensions : 90 x 90 x 220 mm

Related Products

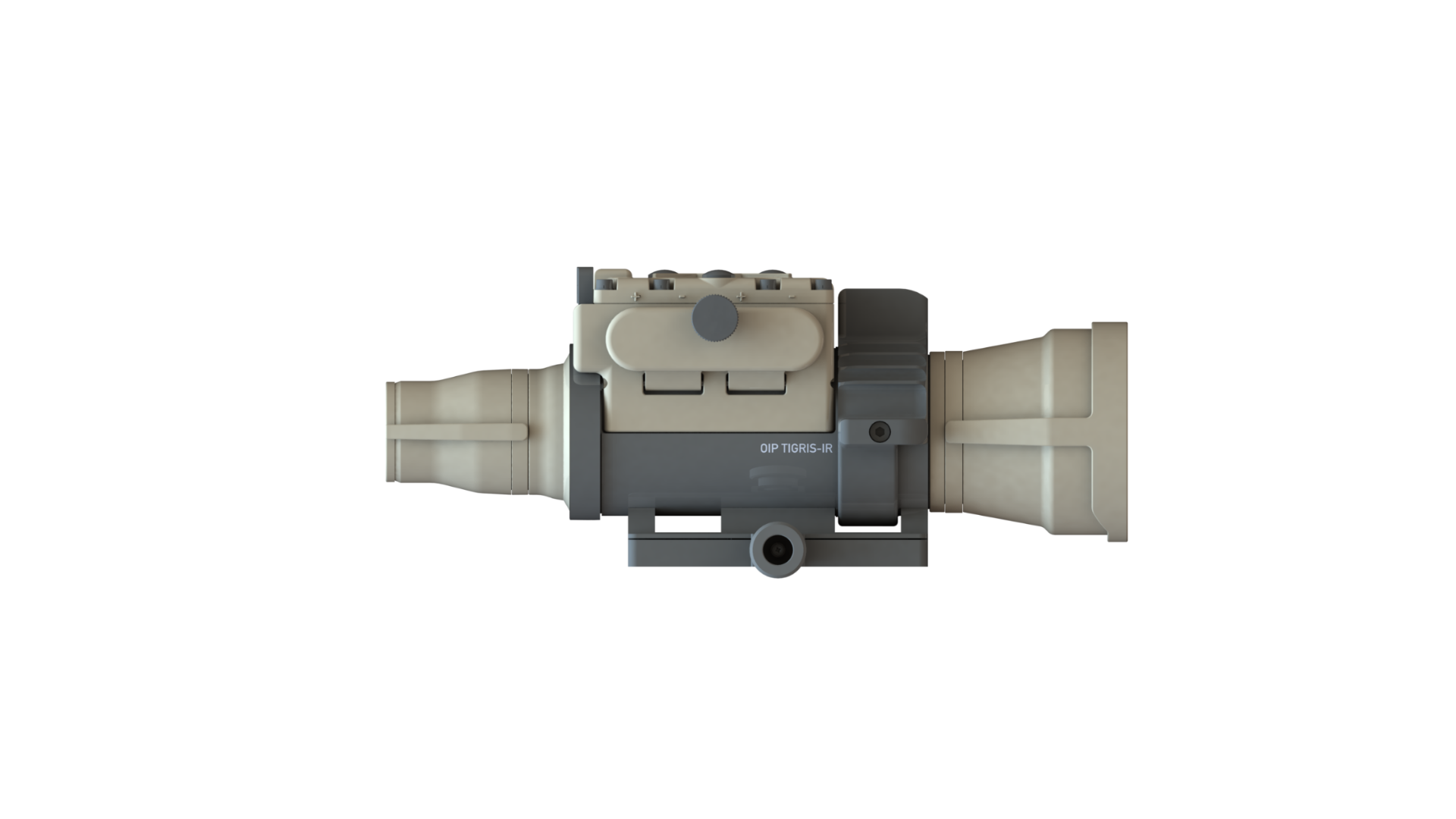

TIGRIS-IR

TIGRIS-IR is a compact, lightweight, high performance clip-on thermal sight for sniper rifles which allows the user to move from day to night operation without need of boresight realignment, for added combat value.
TIGRIS-IR is weapon-mounted by means of a convenient quick mount/release mechanism, without the use of any tools or adapters. The system fits various day sights with magnification op to 8x.
Mounting and dismounting TIGRIS-IR from the weapon is done in seconds, no readjustment or alignment needs to be done by the gunner.
TIGRIS-IR features an uncooled 8-12µ, 640-480 pixels, 17µm pitch detector, is powered from standard AA batteries and can be powered from an external power supply.

Read More

IRBIS

The IRBIS night sights are part of OIP Sensor Systems’ wide range of observation and aiming night sights.
It is a completely integrated, rugged, compact and high performance passive night weapon sight with a 4x or 6x magnification for medium and long-range applications.
The system features a red coloured, electronic adjustable reticle. An integrated bracket permits mounting on all types of machine guns, rifles and anti-tank weapons.

Read More
