Description

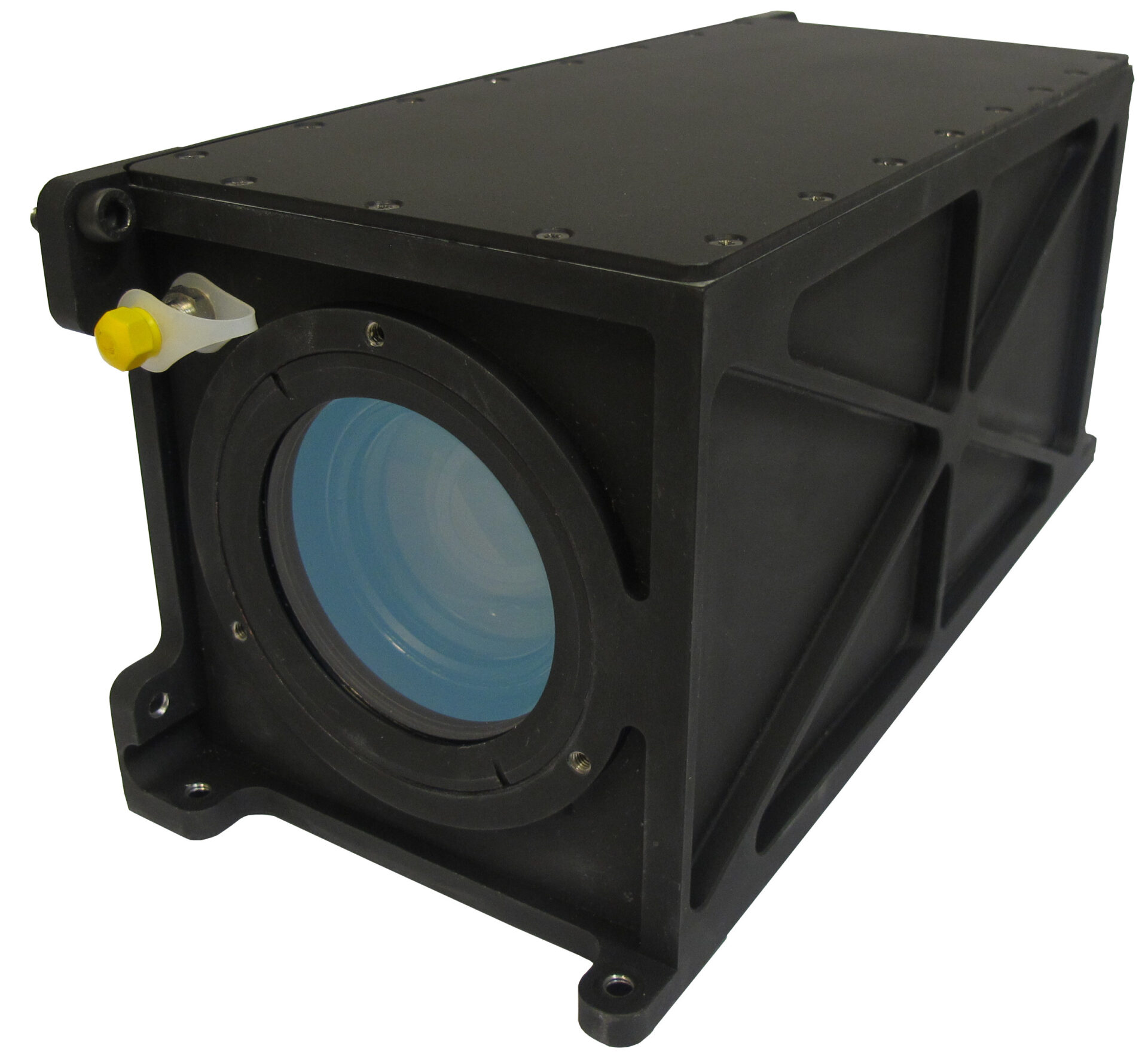

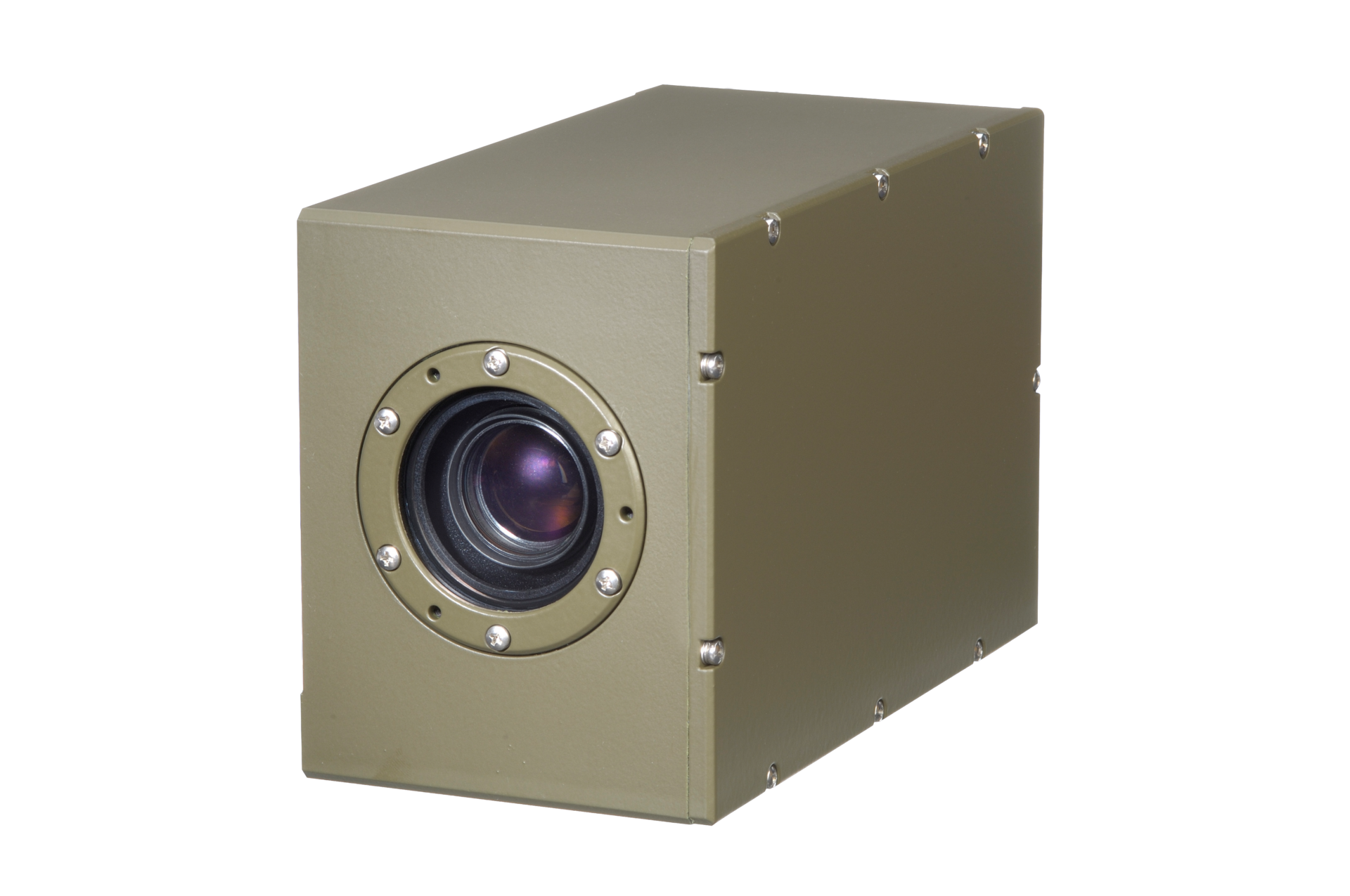

OIP Sensor Systems’ Visible and Near Infra-Red Imaging Systems (VINIRIS) is a family of imaging systems, originated from OIP’S extensive experience in observation and fire control systems. The VINIRIS HD-SDI is a VIS/NIR CCD camera with 21x Optical zoom, housed in a hermetically sealed unit and designed as a Line Replaceable Unit (LRU), ideal for integration into observation, fire control and remote weapon station systems.

Featuring a high-performance 19-250 mm zoom lens and a 1/1.8″ full HD sensor, the VINIRIS HD-SDI produces exceptional image quality with boresight accuracy of less than 0.5 mrad. Smaller fields of view can be achieved when using the digital zoom.

Applications

• Combat vehicle observation
• Combat vehicle weapon station
• Remote controlled and unmanned combat vehicles
• Lightweight weapons
• Vehicle weapon detection systems
• Fire control systems
• Urban warfrare

Features

• Compact design
• TV camera for day observation
• Selectable zoom fields of view for increased range
• Graphic overlay option
• Ruggedized for combat vehicle environmental conditions
• Remote control via communication link

Technical Specifications

GENERAL

• Sensor Type: 1/1,8″
• Pixels: 2,80MP
• Optical Zoom: 21x
• Digital Zoom: 1x- 4x output dependent
• WFOV: 20° (analog)/ 27° (HD-SDI)
• NFOV: 1,4° (analog)/ 1,8° (HD-SDI)
• Output: Analog/ HD-SDI (Full HD – SMPTE 292)

DIMENSIONS (LXWXH)

• 309 mm x 130 mm x 140 mm

WEIGHT

• < 4,5 kg

POWER SUPPLY

• 18-32 V DC

POWER CONSUMPTION

• < 15 W

COMM. PROTOCOL

• RS422

ENVIRONMENTALS

• MIL-STD-810F/G
• MIL-STD 461E
