Description

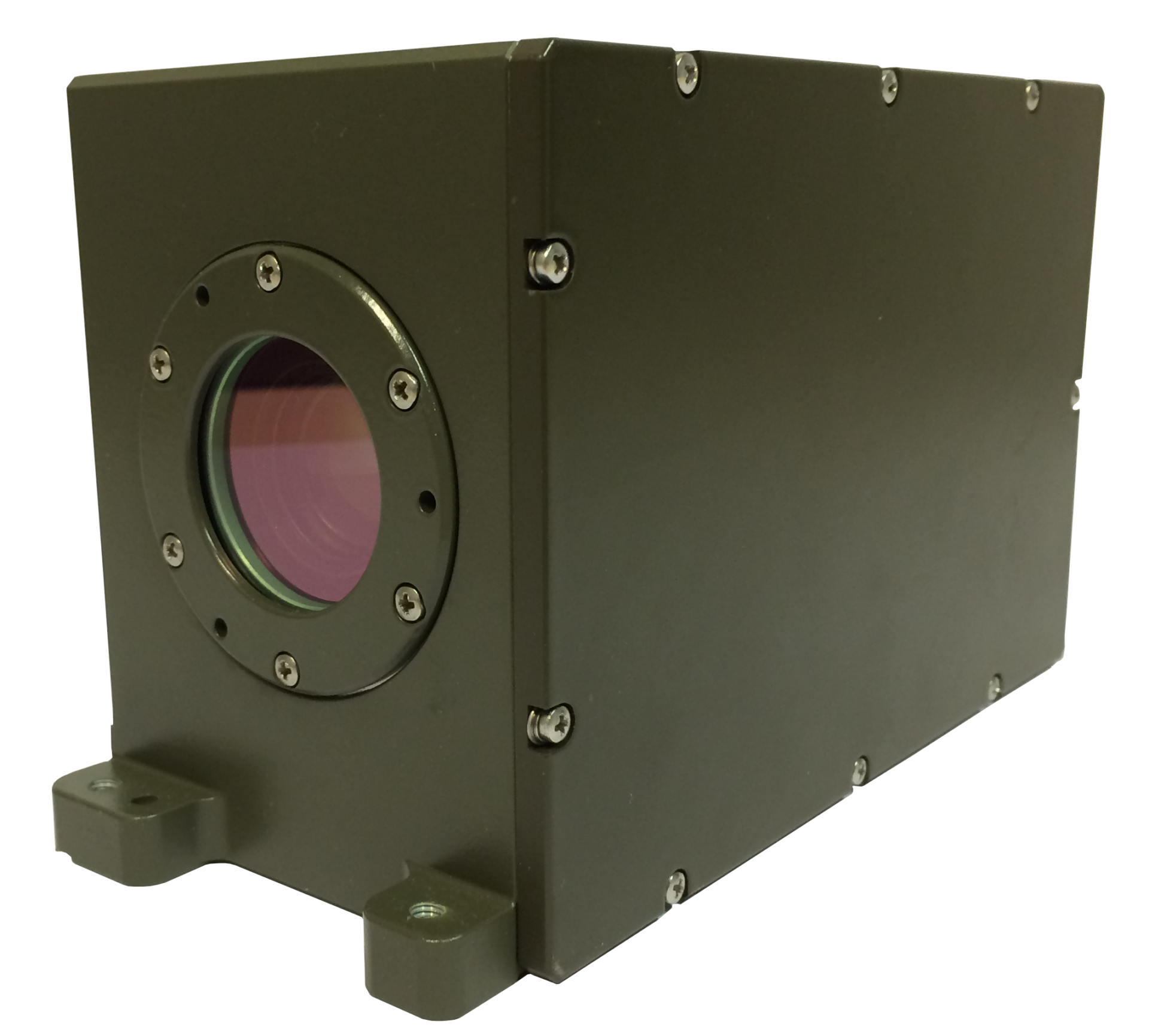

VINIRIS 2.0 is specifically designed to be used in fire control systems, remotely operated weapon stations and recognition systems.

The system is engineered as a line replaceable unit (LRU), featuring a hermetically sealed enclosure with shop replaceable units (SRUs) in an open frame architecture. The development of the system results in a lightweight, modular product.

Applications

• Surveillance and reconnaissance
• Target acquisition
• Fire control system

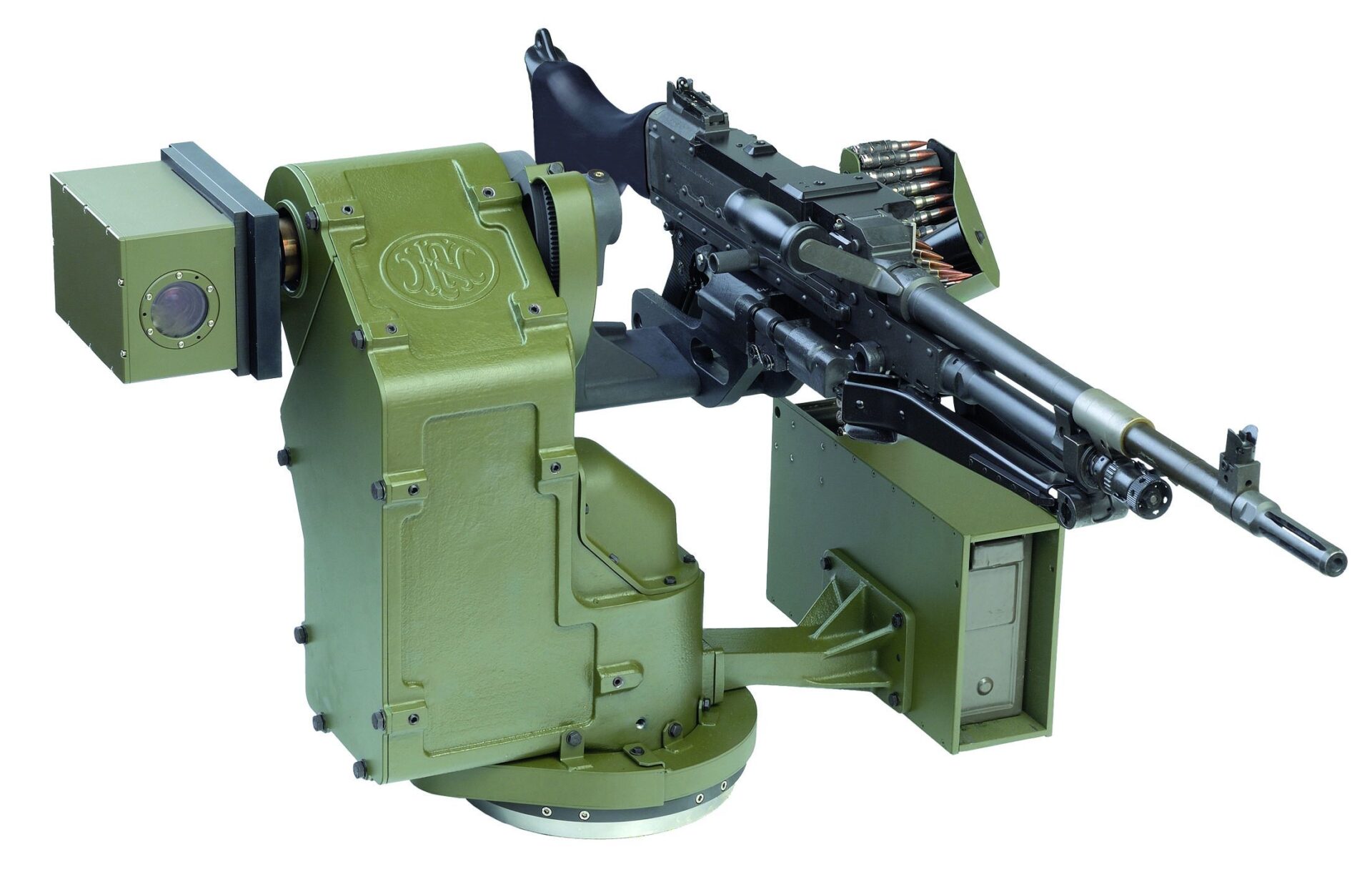

• Specially adapted for vehicle weapon stations

Features

• Compact design
• TV camera for day observation
• Ruggedized for combat vehicle environmental conditions
• Remote control via communication link
• Interface to central command & control

Features

GENERAL

• Sensor type: CMOS
• Pixels: 2.13 MP
• Optical Zoom: 24x
• Digital Zoom: 2x
• WFOV:48°
• NFOV: 2°
• Output: CCIR PAL & Y/C

DIMESIONS (lxwxh)

• 210x90x120

WEIGHT

• < 2kg

POWER SUPPLY

• 18 – 32 VDC MIL-STD-1275D

POWER CONSUMPTION

• 15 W

COMM. PROTOCOL

• RS422

ENVIRONMENTALS

• MIL-STD-810F/G
• MIL-STD 461E
